Custom made Cannon Carriages for "FIRING" Barrels Sold
Pg. 2

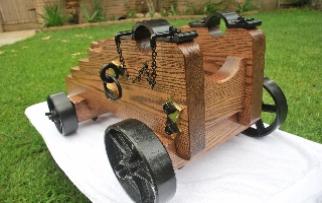

This carriage was custom made from red oak wood for a customer who had a replica Verbruggen barrel.  The
barrel is 37" long and weighs 200 pounds.  The carriage is 26" long, 16" tall and 22" wide at the rear axle.
My customer wanted to roll it very easily, so bearinged wheels were used on a 3/4" steel axle.
The carriage has polished brass accents and weighs 90 pounds.  Tampion for barrel was also custom made
with leather buckle strap.
michael@jmelledge.com
Location- Houston, Texas
Website :  www.jmelledge.com
Phone- 713-249-6020

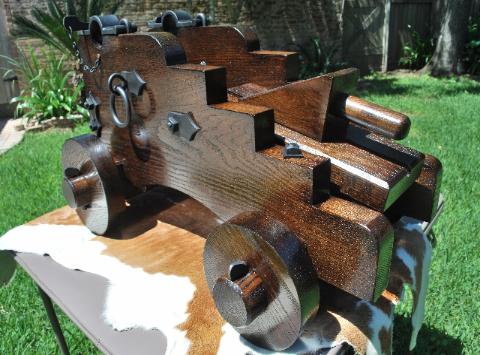

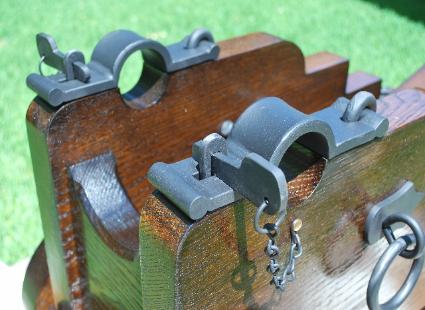

Reproduction Naval / Ships Artillery Carriage

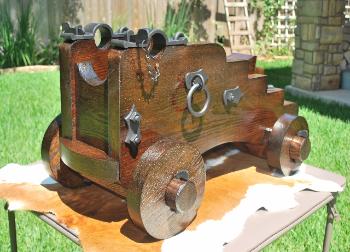

This oak carriage was a custom carriage built for a customer who had a
1763 Dutch East India Bronze cannon barrel.
The barrel is 47-1/2" long and weighs approximately 250 pounds.  The carriage is 35" long, 18-3/4" tall and 22" wide at the rear axle.
The carriage has forged iron accents and weighs 80 pounds.

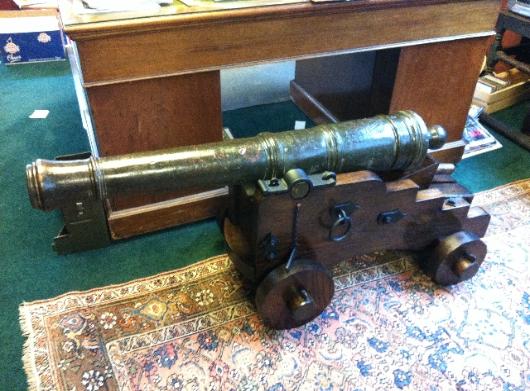

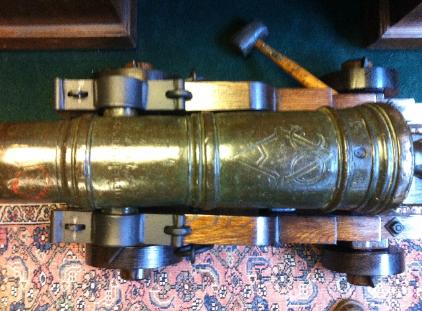

My customer sent pictures
with his 1763 Dutch East
India Bronze cannon barrel
mounted on this carriage I
built for him.
Reproduction Naval / Ships Artillery Carriage
This oak carriage was a custom carriage built for a customer who had a
1763 Dutch East India Bronze cannon barrel.
The barrel is 47-1/2" long and weighs approximately 250 pounds.  The carriage is 35" long, 18-3/4" tall and 22" wide at the rear axle.
The carriage has forged iron accents and weighs 80 pounds.

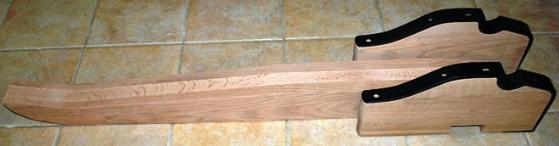

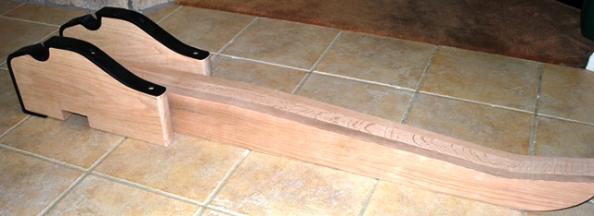

Reproduction 3/4 scale #1 Cannon Trail with cheeks
This unfinished custom oak carriage trail & cheeks was built for a customer who had a
2/3 scale 1841 Six Pounder from Dixie Gun Works. Customer furnished the metal work for cheeks.

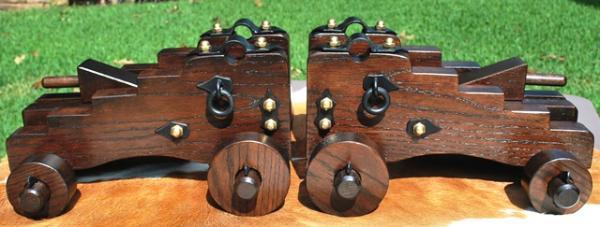

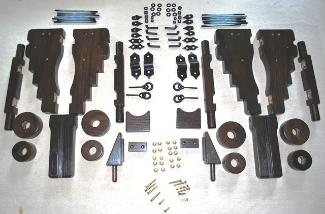

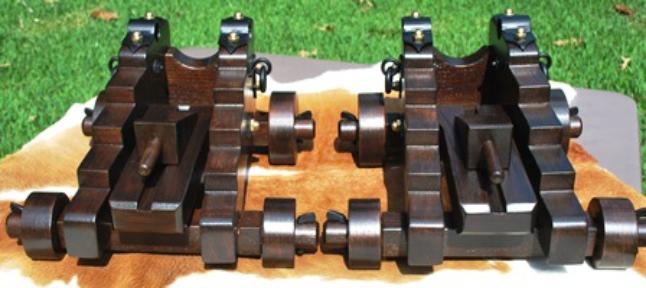

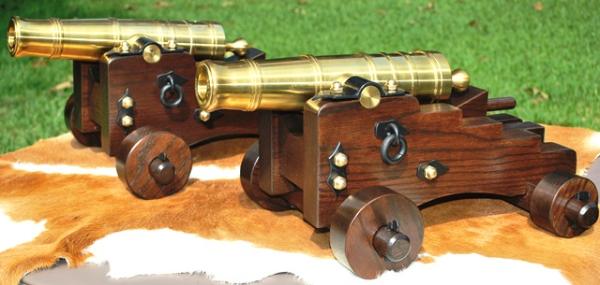

These Twin Naval carriages were custom made from red oak wood for a customer who has 2 Brooks USA 24 pounder brass barrels.  Each
barrel is 13" long with 1" bore and weighs 16 pounds.  The carriages have polished brass accents and stained American Walnut.
 Overall
measurements are 13" wide x 18" long x 10" tall and weighs 28 pounds with the barrel mounted.

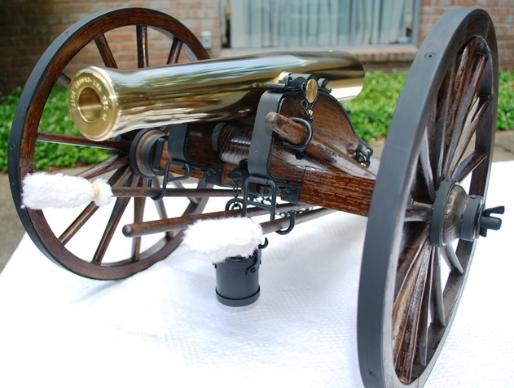

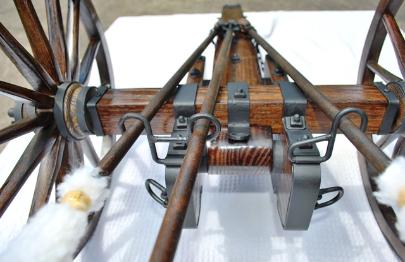

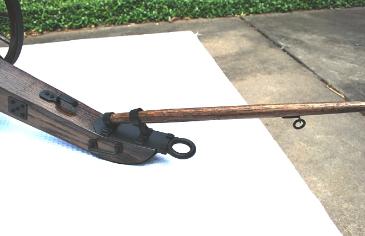

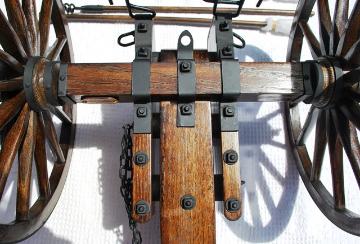

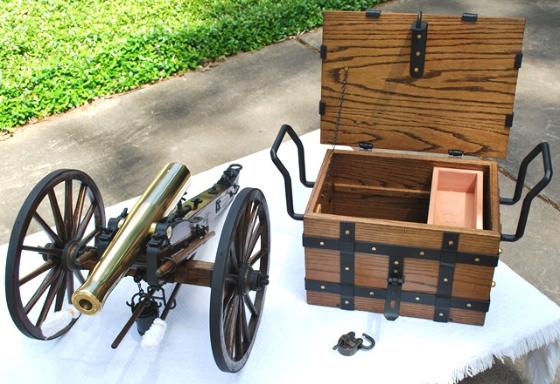

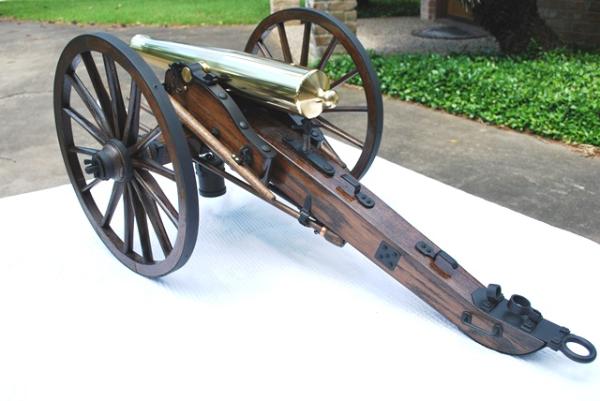

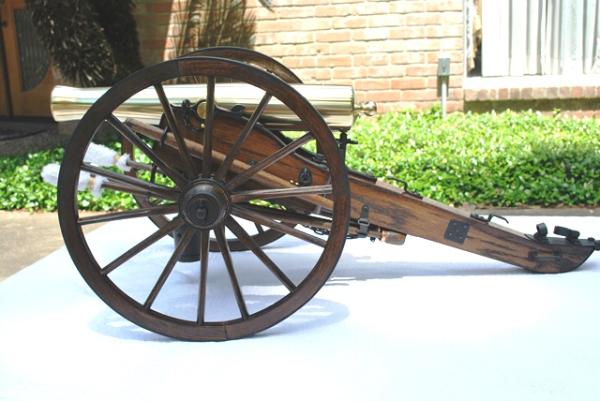

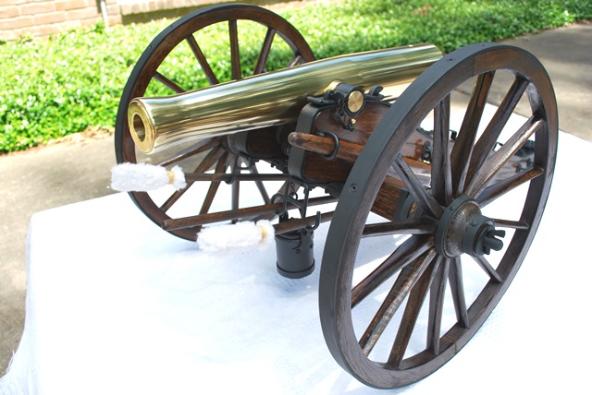

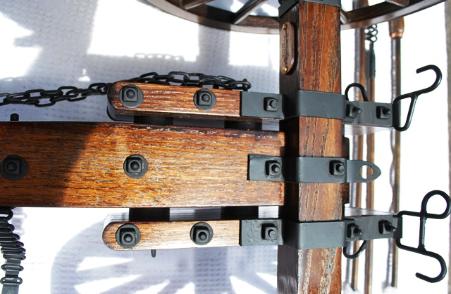

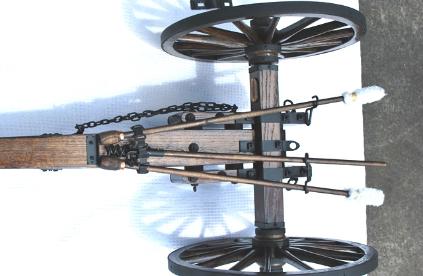

A customer bought one of my custom No #2 Field Carriages, quarter scale, that would fit a Brooks USA Napoleon brass
barrel with a 1.032" bore size that shoots 1" balls.  It is
made of oak wood and stained Dark Walnut color.  Complete
with ram rods and sponge bucket
.
He also bought one of my ammunition chests stained the same color to match the carriage.
